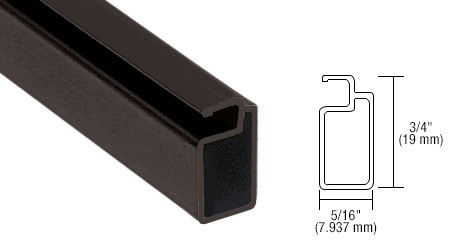

Product Description
Manufacturer Part Number: A345M-P
Extruded With Built-In Camber for Even Screen Tension Durable， Scratch Resistant White， Bronze and Gray Powder Coat Finishes Plus Mill .026" (.66 mm) Wall Thickness
Box-type extruded .026 mil (.66 mm) thickness Frame uses our WSC105 Metal Mitered Corners， WSPC105 Plastic Mitered Corners， or our SWSC516 Square Cut Corner， and our .150" size Spline. Lengths are extruded with built-in camber (slightly bowed) for even screen tension.
SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .026" (.66 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSC105 for Mitered Corners; WSPC105 Plastic Mitered Corners; SWSC516 for Square Cut Corners
Box-type extruded .026 mil (.66 mm) thickness Frame uses our WSC105 Metal Mitered Corners， WSPC105 Plastic Mitered Corners， or our SWSC516 Square Cut Corner， and our .150" size Spline. Lengths are extruded with built-in camber (slightly bowed) for even screen tension.
| Catalog Number: | A345M |
| Color: | Mill |
| Stock Length: | 12' (3.66 m) |
| Thickness: | .026" (.66 mm) |
| Ship Via: | Requires Cutting Instructions for UPS |
| Shipping Weight: | 12 oz (354g) |
| Case Qty: | 100 |
| Minimum Order: | 1 Stock Length |
| Packing Charge: | $ 6.50 for orders of fewer than 12 stock length of screen frame Finishes and/or shapes may be combined to meet minimum quantity. |
SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .026" (.66 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSC105 for Mitered Corners; WSPC105 Plastic Mitered Corners; SWSC516 for Square Cut Corners
This item is overweight. we may contact you when we process the order.
