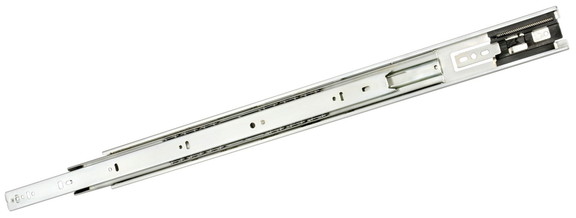

Product Description
Manufacturer Part Number: 422.97.830
12"
Lock-in feature helps keep drawers closed
Holding capacity is 1.5X stronger than standard 3832TR
Elimination of drawer pulls/handles provides an aesthetic， streamlined look
Per pair: 100 lbs
Side mounted
Telescopic
Lever disconnect
Zinc-electroplated
Full extension
For drawers up to 406mm (16") wide
With release lever
Steel
Ball bearing
192 mm
192 mm
For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening
Installation instructions
12"
Item details
Lock-in feature helps keep drawers closed
Holding capacity is 1.5X stronger than standard 3832TR
Elimination of drawer pulls/handles provides an aesthetic， streamlined look
-
Push on the drawer front to open or close the drawer (touch activated)
Opening mechanism activated by 1/16" (2mm) travel inward
Propels drawers open approximately 2 - 5" (51 - 127mm) from the closed position
Load bearing capacity
Per pair: 100 lbs
Mounting
Side mounted
Version
Telescopic
Lever disconnect
Color/finish
Zinc-electroplated
Type of pull out
Full extension
Area of application
For drawers up to 406mm (16") wide
Removing the running track
With release lever
Material
Steel
Bearing
Ball bearing
Width
192 mm
Dim. (W x H)
192 mm
Installation
For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening
Installation instructions
